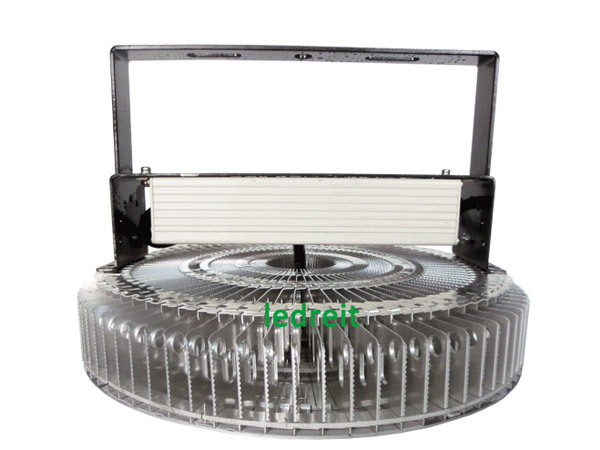

80W High Bay LED Retrofit Bulb
Description
Features

• >130lm/w.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature.
• Aluminum heat sink with fins.
• Meanwell driver and Samsung led chip.
• Clear or diffused or no cover available.



Dimension



LED High Bay Retrofit Bulb dimensions



Technical Specifications
Model NO.
YPD-80W
Rated Power
80W
Input Voltage
100-277Vac or 200-480Vac
Power Factor
PF>0.95
LED Samsung led
LED Luminous Efficiency
>130lm/w
Luminous Flux(125lm/w) 11,000lm
Color Temperature Standard
WarmWhite: 2,700 3,500 K
Natural White: 4,000 4,500 K
Cool White: 5,500 6,700K
CRI
Ra>83
LED Emitter Life
50,000hours
Replacement
275-300w MH, HPS
Working Environment
Indoor/Outdoor Lighting
Operating Temperature
-40~50℃
Warranty
5 years factory warranty



Applications

Indoor lighting.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting



The relevant product parameters
Model NO.
YPD-60W YPD-80W YPD-100W YPD-120W YPD-150W
Rated Power
60W 80W 100W 120W 150W
LED Samsung led Samsung led Samsung led Samsung led Samsung led
LED Luminous Efficiency >130lm/w >130lm/w >130lm/w >130lm/w >130lm/w
Luminous Flux
7,800lm 11,000lm 13,000lm 15,000lm 20,000lm
Replacement

225-250w
HID, CFL

275-300w
MH, HPS
350-400w
MH, HPS
400-450w
MH, HPS
400-500w
MH, HPS
Power Factor
PF>0.95 PF>0.95 PF>0.95 PF>0.95 PF>0.95
CRI Ra>83 Ra>83 Ra>83 Ra>83 Ra>83
Warranty 5 years factory warranty 5 years factory warranty 5 years factory warranty 5 years factory warranty 5 years factory warranty
