Product Features



This LED bulb is tailored to replace MH,HPS,HID,CFL lamp etc.,for all outdoor and indoor fixture. (no matter the base is up or down).

• Can adjust any beam angle that you need.

• >125lm/w, 150lm/w is available.

• Universal AC input 100-277Vac or 200-480Vac.

• Protections: Short circuit / Over current /Over temperature(Reduce the current).

• Sealing glue helps improve the fixture's efficiency while dissipating heat.

• Clear or diffused or no cover available.

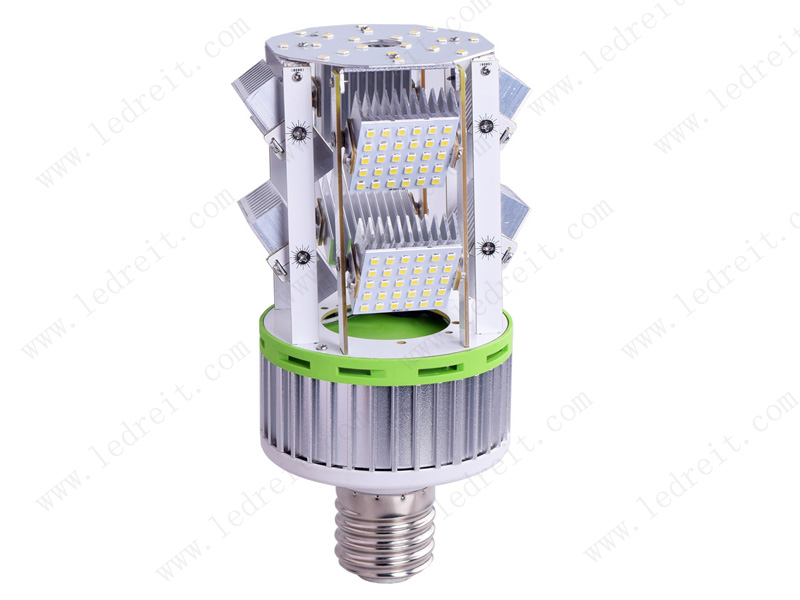

Led-Adjustable-Corn-Light-Features



Technical Specifications
Item No. CL-40W
Rated Power 40W
Input Voltage 100-277Vac, 200-480Vac
Power Factor PF>0.95
LED Luminous Efficiency 125lm/w or 150lm/w
Lamp Base E40/E39, E27/E26, Ex39
Luminous Flux(125lm/w) 5,100lm
Luminous Flux(150lm/w) 6,000lm
Color Temperature 2200K, 2700K, 3000k, 4000k, 4500k, 5000k, 5700k, 6500k
Color Rendering Index(CRI) Ra>83
LED Emitter Life >50,000 hours
Replacement 125-150w MH, HPS
Dimension Φ96*218mm/Φ3.7*8.5inch
Warranty 5 years factory warranty



Dimension

 Led Adjustable Corn Light Dimension

Applications

This LED bulb can be applied for all different Canopy fixtures, high bay,low bay fixtures, pole lighting fixture to replace MH HPS HID lamp.

Led-Adjustable-Corn-Light-Applications



Lighting Efficiency

 Led-Adjustable-Corn-Light-Lighting-Efficiency



The relevant product parameters
Item No. Watts Power Factor Luminous Flux
(125lm/w)
Luminous Flux
(150lm/w)
Replacement CRI
CL-30W 30w PF>0.95 3,800lm 4,500lm 75-105w MH,HPS Ra>83
CL-40W 40w PF>0.95 5,100lm 6,000lm 125-150w MH,HPS Ra>83
CL-50W 50w PF>0.95 6,200lm 7,500lm 175-225w MH,HPS Ra>83
CL-60W 60w PF>0.95 7,500lm 9,000lm 225-250w MH,HPS Ra>83
CL-80W 80W PF>0.95 10,400lm 12,000lm 250-300w MH,HPS Ra>83
CL-100W 100W PF>0.95 13,000lm 15,000lm 300-350w MH,HPS Ra>83
CL-120W 120W PF>0.95 15,600lm 18,000lm 350-400w MH,HPS Ra>83
