Description
LED Post Top Retrofit features

Features

• >125lm/w, 150lm/w is available.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature(Reduce the current).
• Aluminum heat sink with fins.
• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused or no cover available.



Dimension

 LED Post Top Retrofit dimension



Details

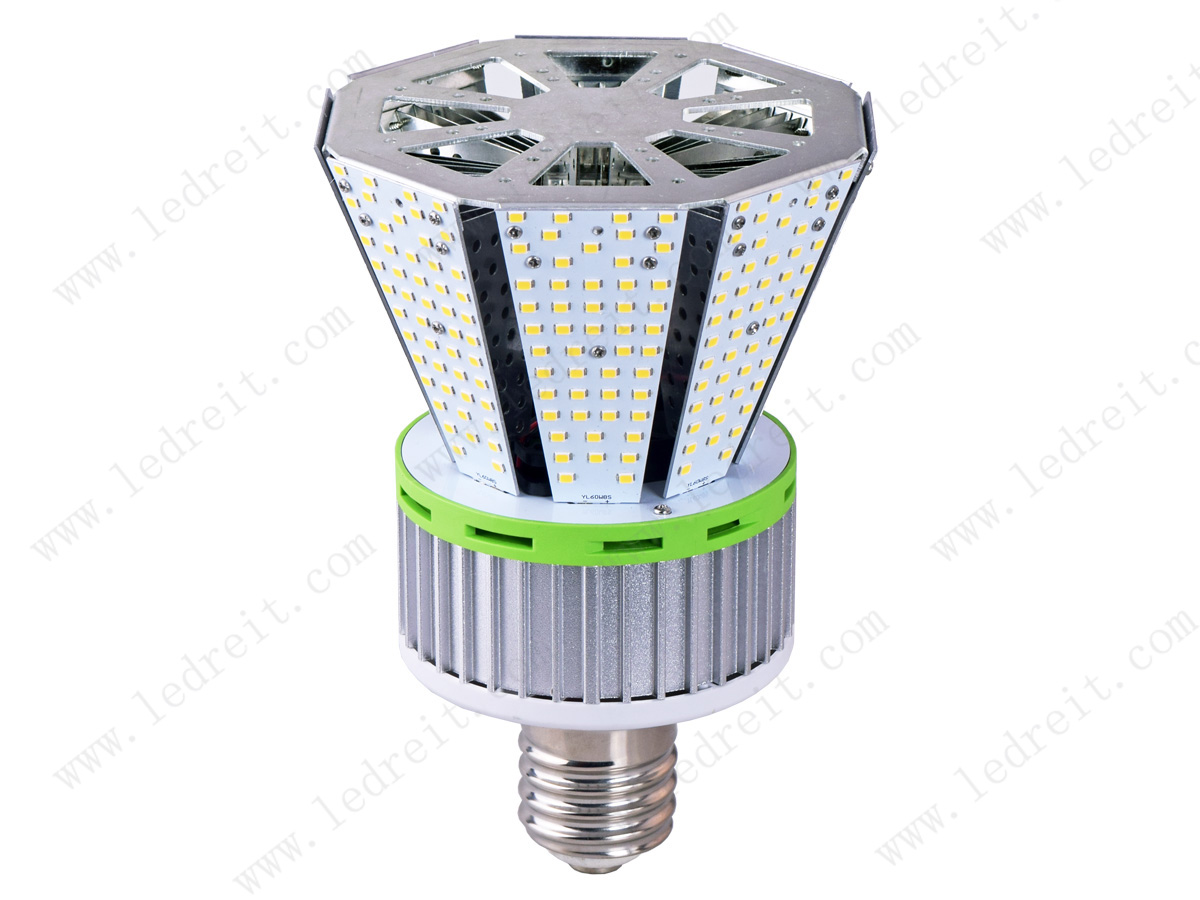

 LED Post Top
Retrofit 01



Technical Specifications
Model NO.
YL-20W8S
Rated Power
20W
Input Voltage
100-277Vac or 200-480Vac
Input Current
0.64A / 115VAC ; 0.32A / 230VAC ; 0.3A / 277VAC
Power Factor
PF>0.95
Power Efficiency
>88%
Beam Angle
360°
Lamp Base
E40/E39, E27/E26, Ex39
LED Luminous Efficiency
>125lm/w, 150lm/w is available
Luminous Flux(125lm/w) 2,600lm
Luminous Flux(150lm/w)
3,000lm
Color Temperature Standard
WarmWhite: 2,700 3,500 K
Natural White: 4,000 4,500 K
Cool White: 5,500 6,700K
CRI
Ra>83
LED Emitter Life
50,000hours
Replacement
50W-75W MH/HPS
Working Environment
Indoor/Outdoor Lighting
Operating Temperature
-40~50℃
Dimensions
Φ128*190mm/Φ5.0*7.5inch
Warranty
5 years factory warranty
Packing
1pc/Box, 12pcs/Carton

Advantage

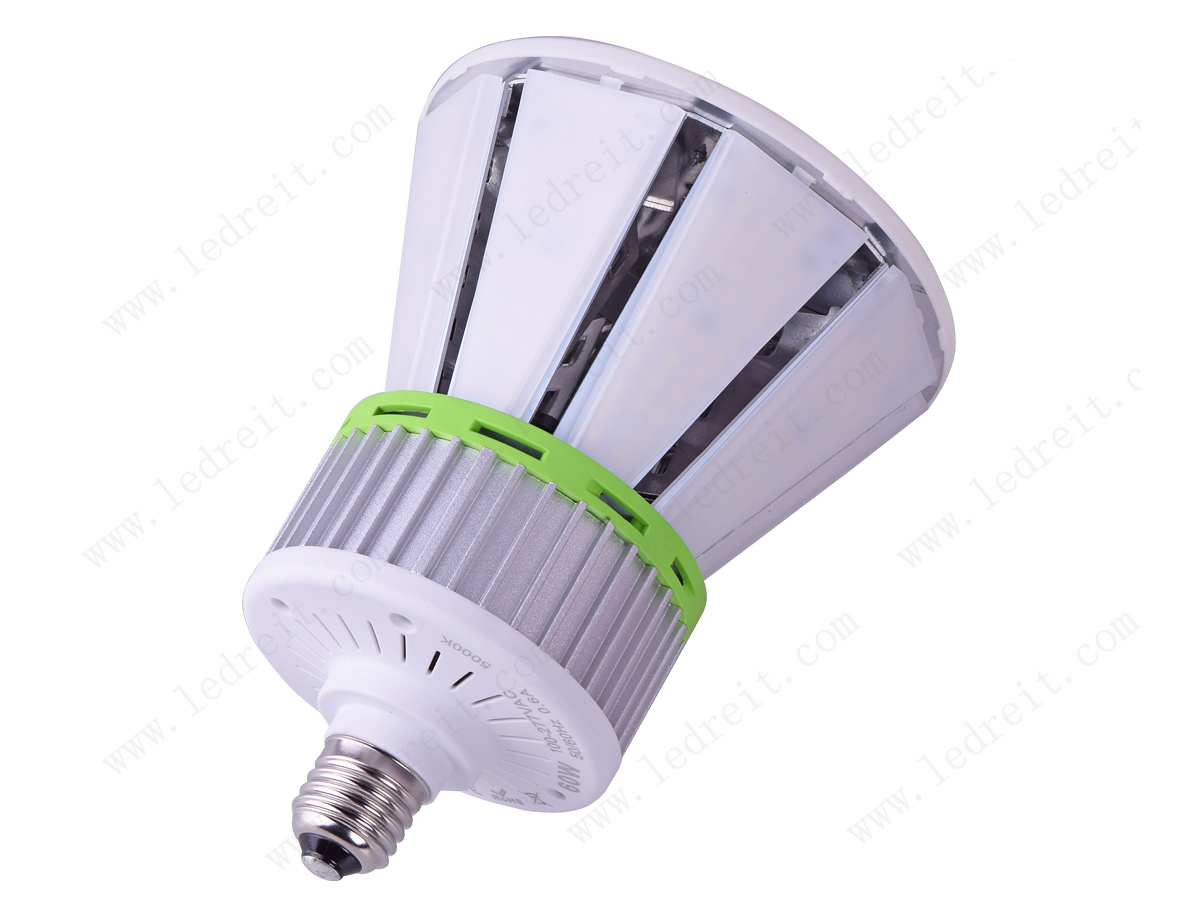

 LED Post Top
Retrofit 03

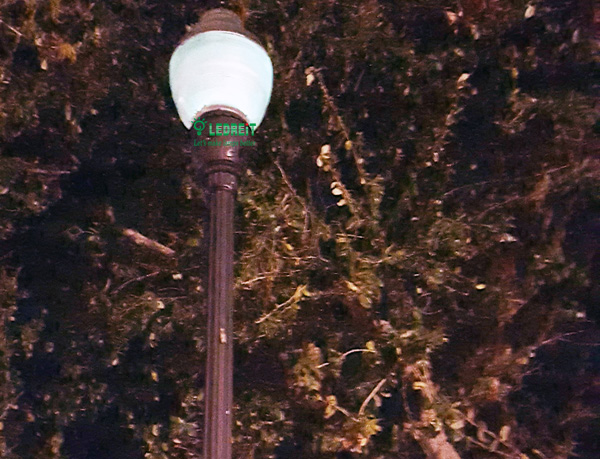

Application

Warehouse, indoor lighting, street landscape.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting

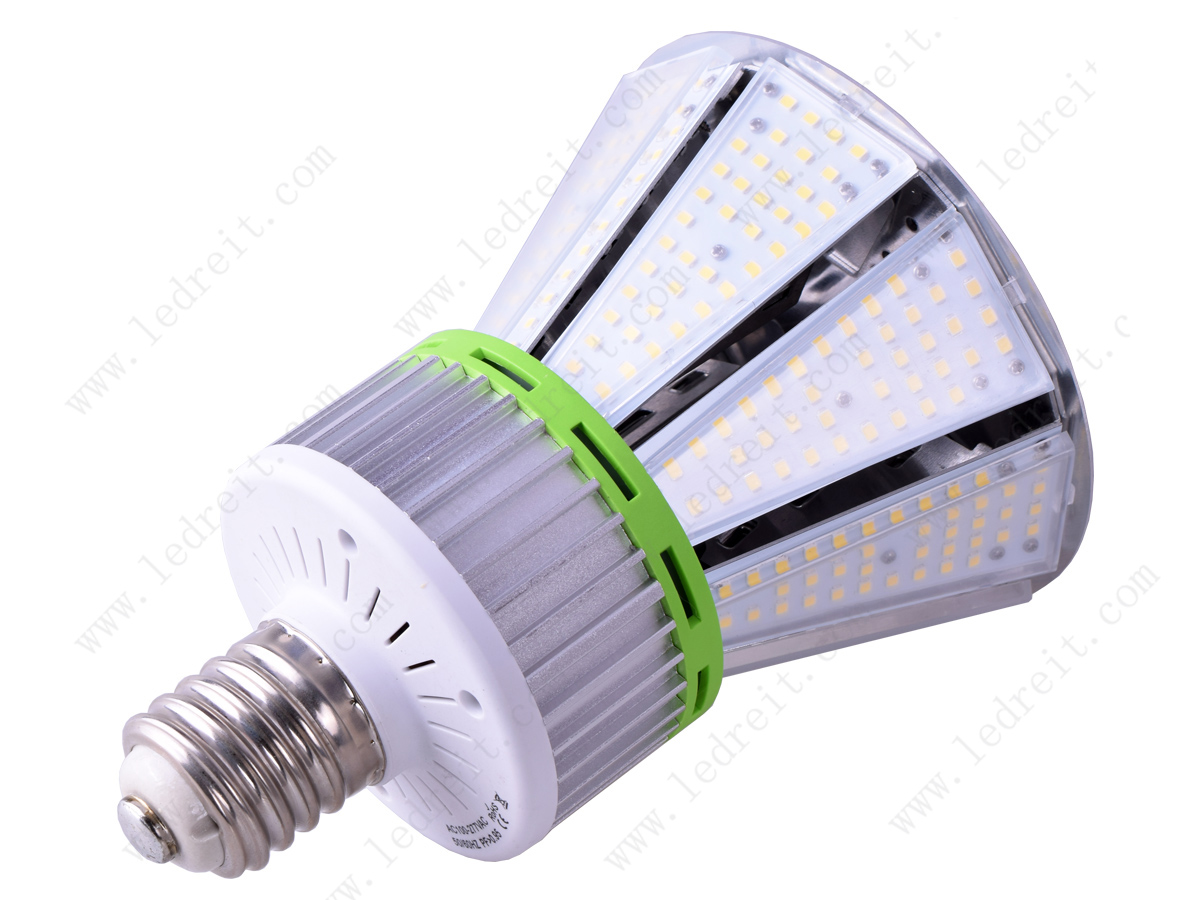

 led post top retrofit



The relevant product parameters
Model NO.
YL-15W8S
Rated Power
80W
60W
50W
40W
30W
20W
15W
Luminous Flux(125lm/w)
9,800lm
7,500lm
6,200lm
5,100lm
3,800lm
2,600lm
1,900lm
Luminous Flux(150lm/w)
12,000lm 9,000lm 7,500lm 6,000lm 4,500lm 3,000lm 2,250lm
Replacement
275-300w MH,HPS 225W-250W MH/HPS
175W-225W MH/HPS
125W-150W MH/HPS
75W-105W MH/HPS
50W-75W MH/HPS
30-50W HID,CF
Dimensions

Φ167*195mm

Φ6.6*7.7inch

Φ128*190mm

Φ5.0*7.5inch

Φ128*190mm

Φ5.0*7.5inch

Φ90*136mm

Φ3.6*5.4inch

Power Factor
PF>0.95
Input Voltage
100-277VAC
Power Efficiency
>88%
Beam Angle
360°
Lamp Base
E40/E39, E27/E26, Ex39
E27/E26
LED Luminous Efficiency
>125lm/w, 150lm/w is available
Color Temperature Standard
WarmWhite: 2,700 3,500 K
Natural White: 4,000 4,500 K
Cool White: 5,500 6,700K
CRI
Ra>83
LED Emitter Life
50,000hours
Working Environment
Indoor/Outdoor Lighting
Operating Temperature
-40~50℃
Warranty
5 years factory warranty
Packing
1pc/Box, 12pcs/Carton
