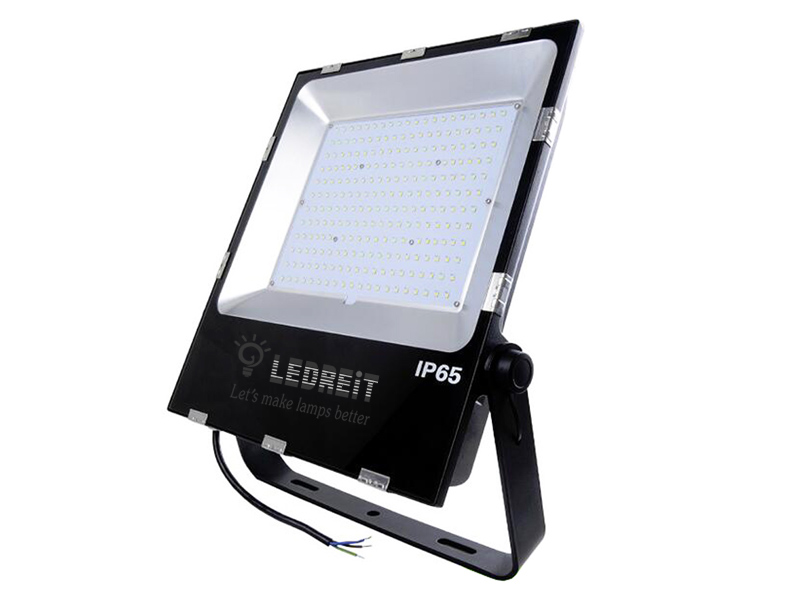

| Product Features |
• >130lm/w.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current/ Over temperature
• IP65 can be outdoor using.

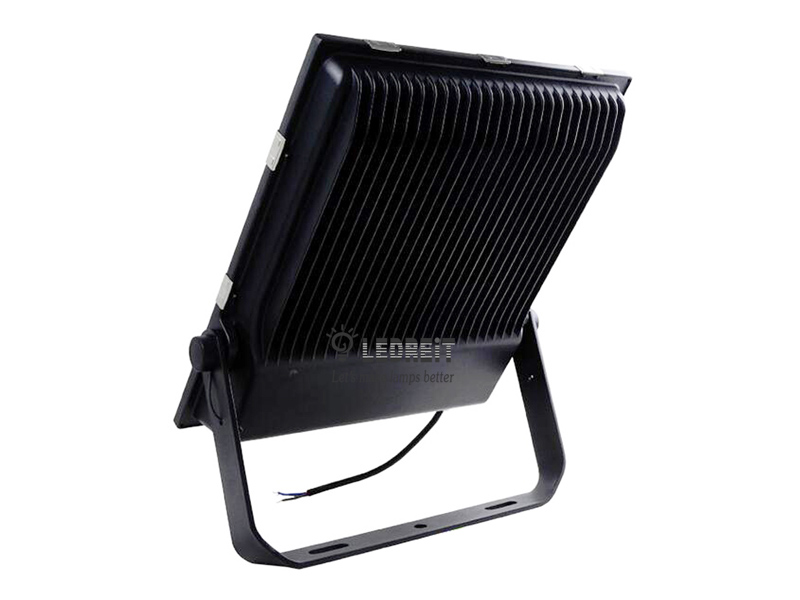

• Easy installation, adjustable stand lets you point the light at different angles.
• Meanwell driver and Osram led chip.
• CCT: 2700K-6700K, Green color
| Mechanical Specification (mm) |
| Technical Specifications |
| Item No. | FDL-200W |
| Rated Power | 200W |
| Input Voltage | 100-277Vac or 200-480Vac |
| Input Current | 2.0A / 115VAC ; 1.0A / 230VAC ; 0.9A / 277VAC |
| Power Factor | PF>0.95 |
| Power Efficiency | >88% |
| Beam Angle | 120° |
| Light Source/Count | Osram led |
| Lamp Base | Wires |
| LED Luminous Efficiency | >130lm/w |
| Luminous Flux | 26,000lm |
| Color Temperature Standard | 2700K-6700K, Green color |
| Color Rendering Index(CRI) | Ra＞83 |
| LED Emitter Life | 50,000hours |
| Replacement | 500-750w MH, HPS |
| Working Environment | Indoor/Outdoor Lighting |
| Operating Temperature | -40~50℃ |
| The Dimensions | 470*360*54mm |
| N.W | 6 kg |
| Packing | 1pc/Box, 8pcs/Carton |
| Packing Size (L*W*H) | 47 * 42 * 27 cm/ 49 * 44 * 59 cm |
| Applications |
Square,Bridge,outdoor lighting.
Conference / stadiums / Commercial Complexes
Places where need energy saving and high color rendering index lighting
| Installation |
| The relevant product parameters |
| Model NO. | FDL-10W | FDL-20W | FDL-30W | FDL-50W |
| Rated Power | 10W | 20W | 30W | 50W |
| LED | Osram led | Osram led | Osram led | Osram led |
| LED Luminous Efficiency | >130lm/w | >130lm/w | >130lm/w | >130lm/w |
| Luminous Flux | 1,300lm | 2,600lm | 3,900lm | 6,500lm |
| Replacement | 18-30w CFL/HID | 50-75w MH, HPS | 75-105w MH/HPS | 105-175w MH/HPS |
| Power Factor | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 |
| CRI | Ra＞83 | Ra＞83 | Ra＞83 | Ra＞83 |
| Dimensions | 166*116*32mm | 216.5*152*40mm | 226.5*167*40mm | 310.5*220*48mm |
| Model NO. | FDL-70W | FDL-100W | FDL-150W | FDL-200W |
| Rated Power | 70W | 100W | 150W | 200W |
| LED | Osram led | Osram led | Osram led | Osram led |
| LED Luminous Efficiency | >130lm/w | >130lm/w | >130lm/w | >130lm/w |
| Luminous Flux | 9,100lm | 13,000lm | 19,500lm | 26,000lm |
| Replacement | 175-250w MH, HPS | 250-300w MH, HPS | 300-400w MH, HPS | 500-750w MH, HPS |
| Power Factor | PF>0.95 | PF>0.95 | PF>0.95 | PF>0.95 |
| CRI | Ra＞83 | Ra＞83 | Ra＞83 | Ra＞83 |
| Dimensions | 354*245*50mm | 402*295*54mm | 430*330*54mm | 470*360*54mm |
