Description
led pyramid light features

Features

• >125lm/w, 150lm/w is available.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current / Over temperature(Reduce the current).
• Aluminum heat sink with fins.
• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused or no cover available.


Dimensions

 led pyramid light dimensions


Details

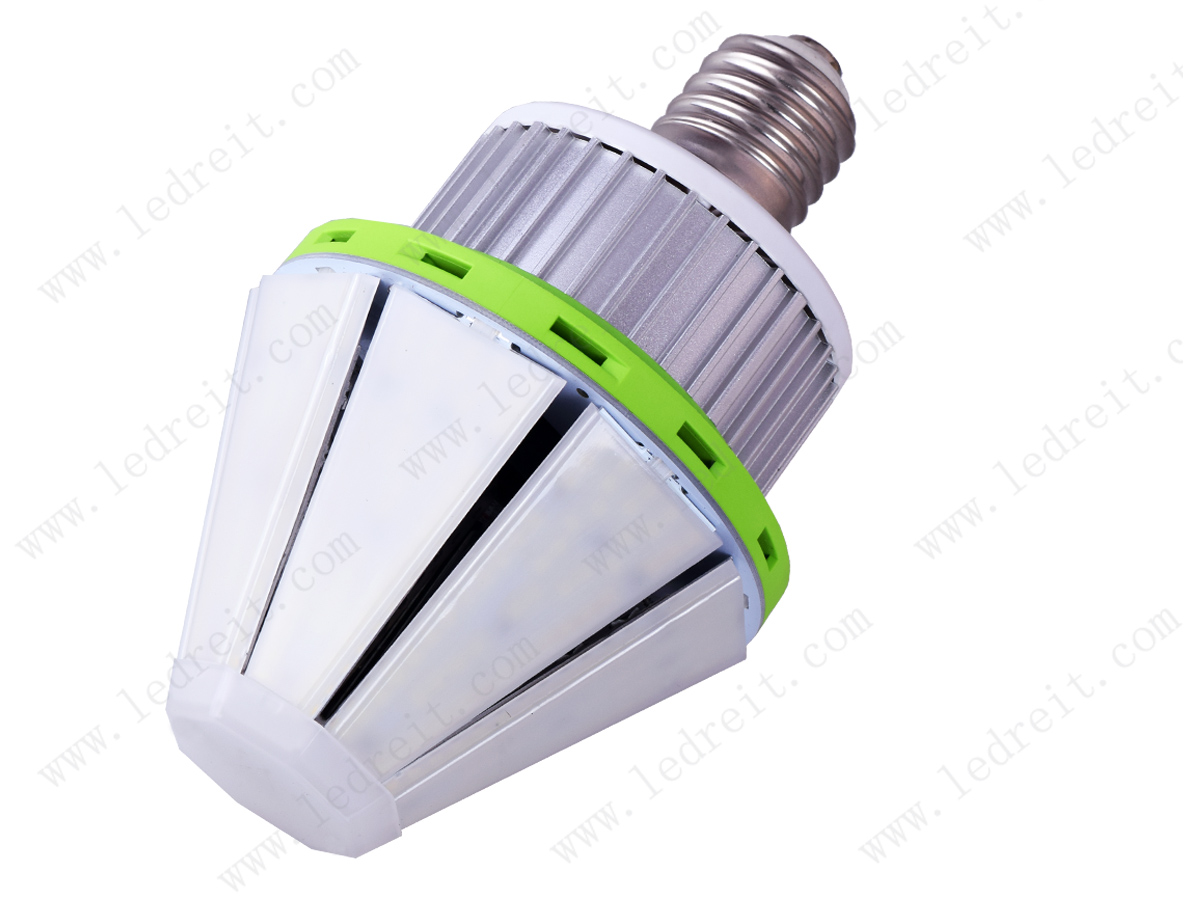

60W LED Pyramid Light 02

Technical Specifications
Rated Power 50W
Universal AC input 100-277Vac or 200-480Vac
Input Current 0.64A / 115VAC ; 0.32A / 230VAC ; 0.3A / 277VAC
Power Factor PF>0.95
Power Efficiency >88%
Beam Angle 360°
Lamp Base E40/E39, E27/E26, Ex39
LED Luminous Efficiency >125lm/w, 150lm/w is available
Luminous Flux(125lm/w) 6,200lm
Luminous Flux(150lm/w) 7,500lm
Color Temperature Standard WarmWhite: 2,700~3,500 K
Natural White: 4,000~4,500 K
Cool White: 5,500~6,700K
Color Rendering Index(CRI) Ra>83
LED Emitter Life 50,000hours
Replacement 175W-225W Metal Halide/HPS
Working Environment Indoor/Outdoor Lighting
Operating Temperature -40~50℃
The Dimensions Φ128*190mm/Φ5.0*7.5inch
Warranty 5 years factory warranty
Packing 1pc/Box, 12pcs/Carton



Advantage



60W LED Pyramid Light 03



Applications

applications:Warehouse, indoor lighting, street landscape.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting

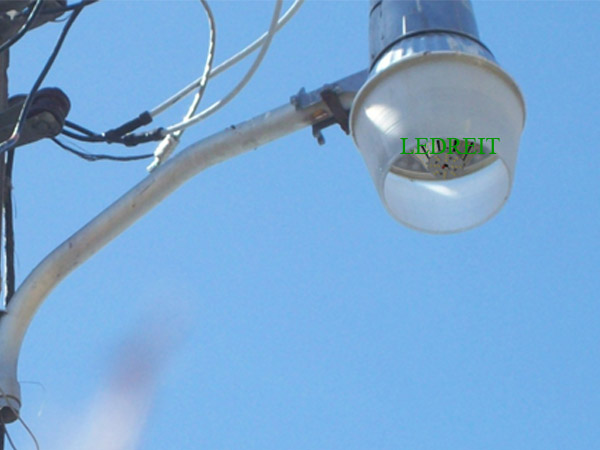

60w UL DLC 60W LED Pyramid Light application


Certificate


60W LED Pyramid Light certificate



The relevant product parameters
Model NO.
Rated Power
80W
60W
50W
40W
30W
25W
20W

Luminous Flux

(125lm/w)

9,800lm 7,500lm 6,200lm 5,100lm 3,800lm  3,200lm 2,600lm

Luminous Flux

(150lm/w)

11,000lm 9,000lm 7,500lm 6,000lm 4,500lm  3,750lm 3,000lm
Replacement
275-300w MH,HPS
225-250w MH,HPS
175W-225W MH/HPS
125W-150W MH/HPS
75W-105W MH/HPS
40-60W HID,CFL
40-60W HID,CFL
Input Current
0.7A/115VAC
0.35A/230VAC
0.29A/277VAC
0.64A/115VAC
0.32A/230VAC
0.3A/277VAC
0.45A/115VAC
0.22A/230VAC
0.19A/277VAC
0.35A/115VAC
0.18A/230VAC
0.15A/277VAC
0.26A/115VAC
0.13A/230VAC
0.11A/277VAC
0.18A/115VAC
0.09A/230VAC
0.08A/277VAC
0.18A/115VAC
0.11A/230VAC
0.10A/277VAC
Dimensions
Dia 150 * 218mm / Dia 5.9 * 8.6inch
Φ128*190mm/Φ5.0*7.5inch
Φ106*167mm/Φ4.2*6.6inch

Power Factor
PF>0.95
Power Efficiency
>93%
>88%
Universal AC input
100-277Vac or 200-480Vac
Beam Angle
360°
Lamp Base
E40/E39, E27/E26, Ex39
LED Luminous Efficiency
>125lm/w, 150lm/w is available
Color Temperature Standard
WarmWhite: 2,700 3,500 K
Natural White: 4,000 4,500 K
Cool White: 5,500 6,700K
CRI
Ra>83
LED Emitter Life
50,000hours
Working Environment
Indoor/Outdoor Lighting
Operating Temperature
-40~50℃
Warranty
5 years factory warranty
Packing
1pc/Box, 12pcs/Carton
