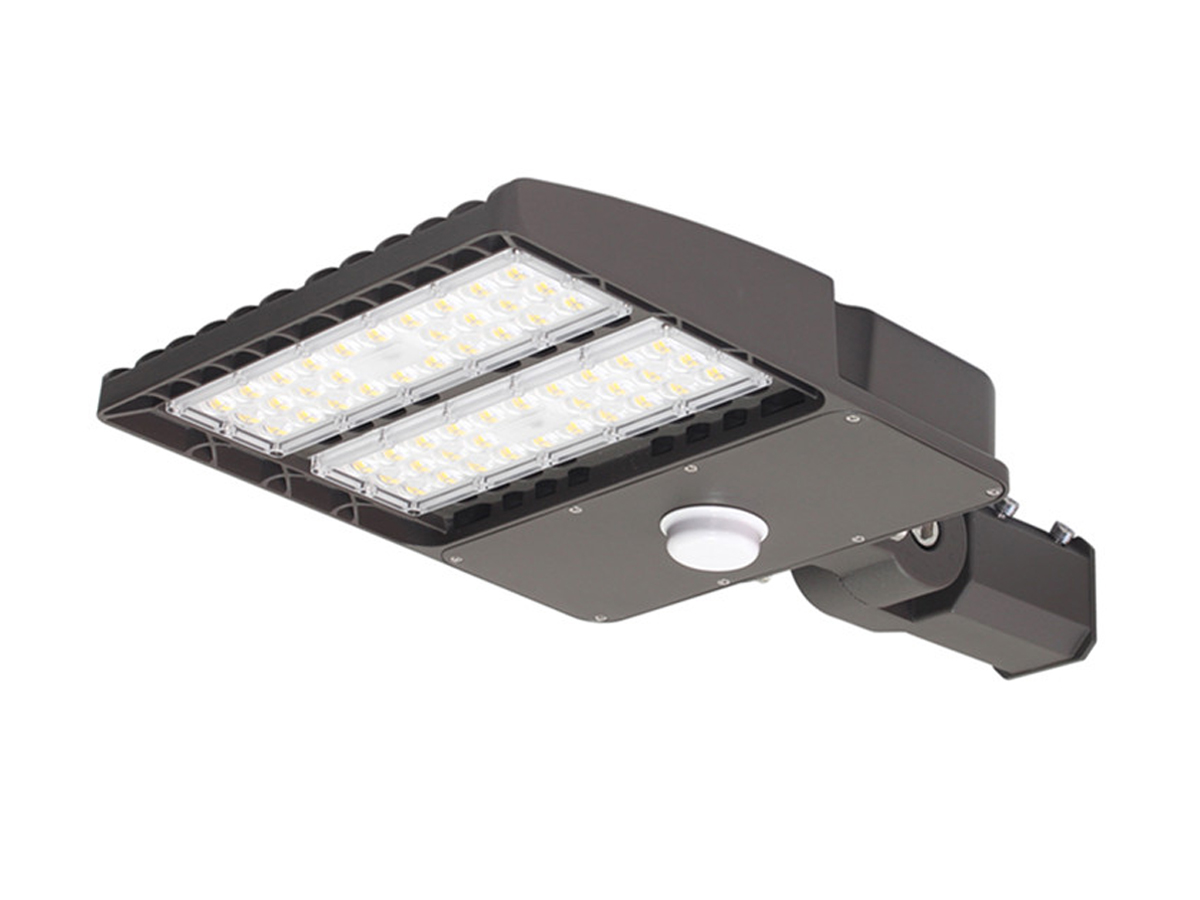

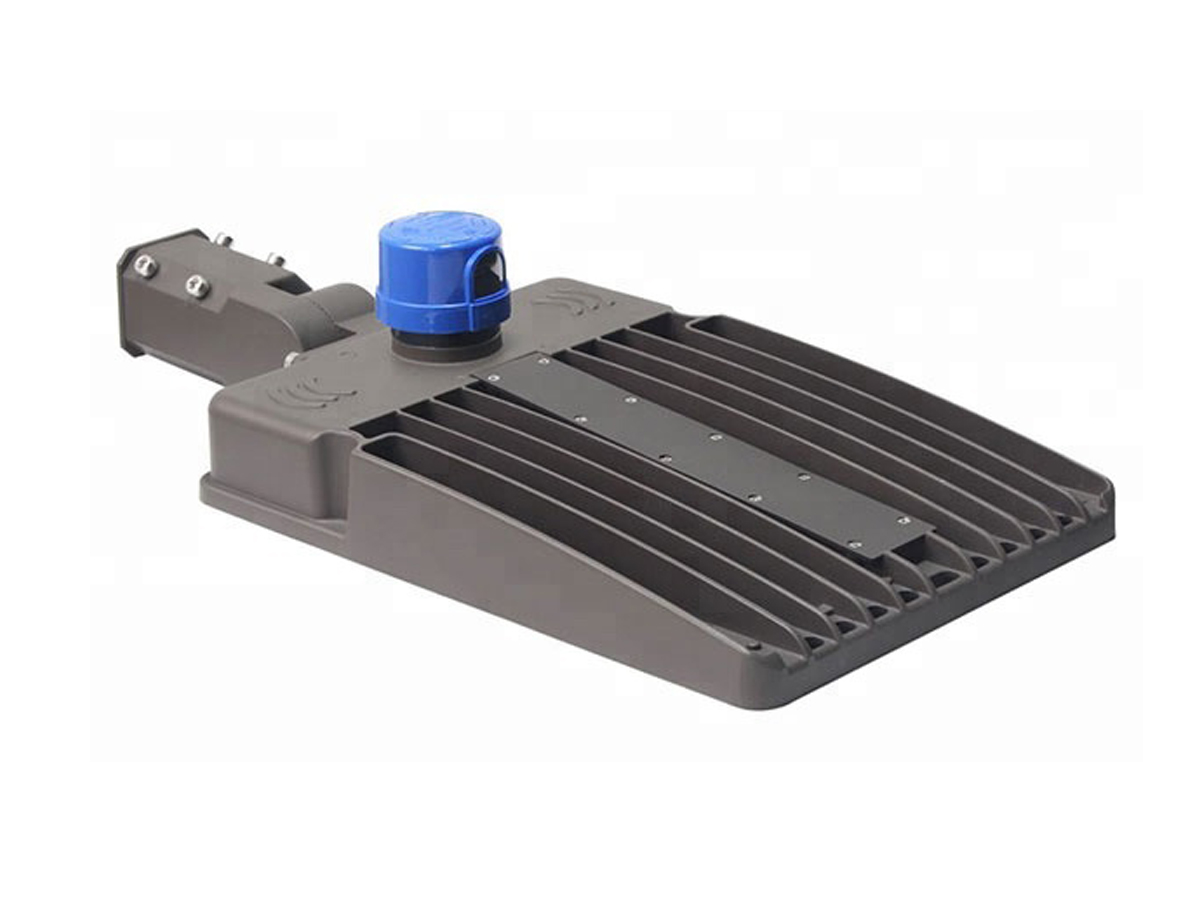

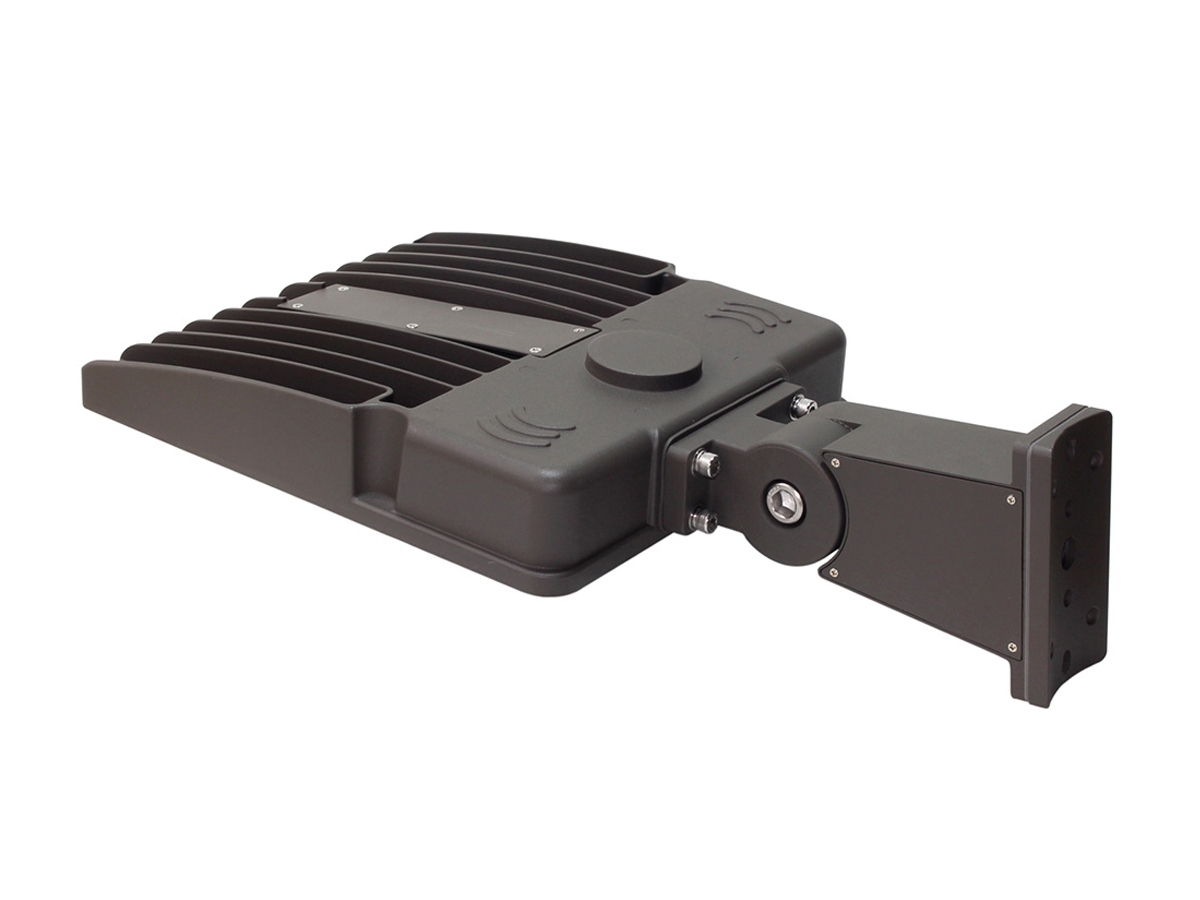

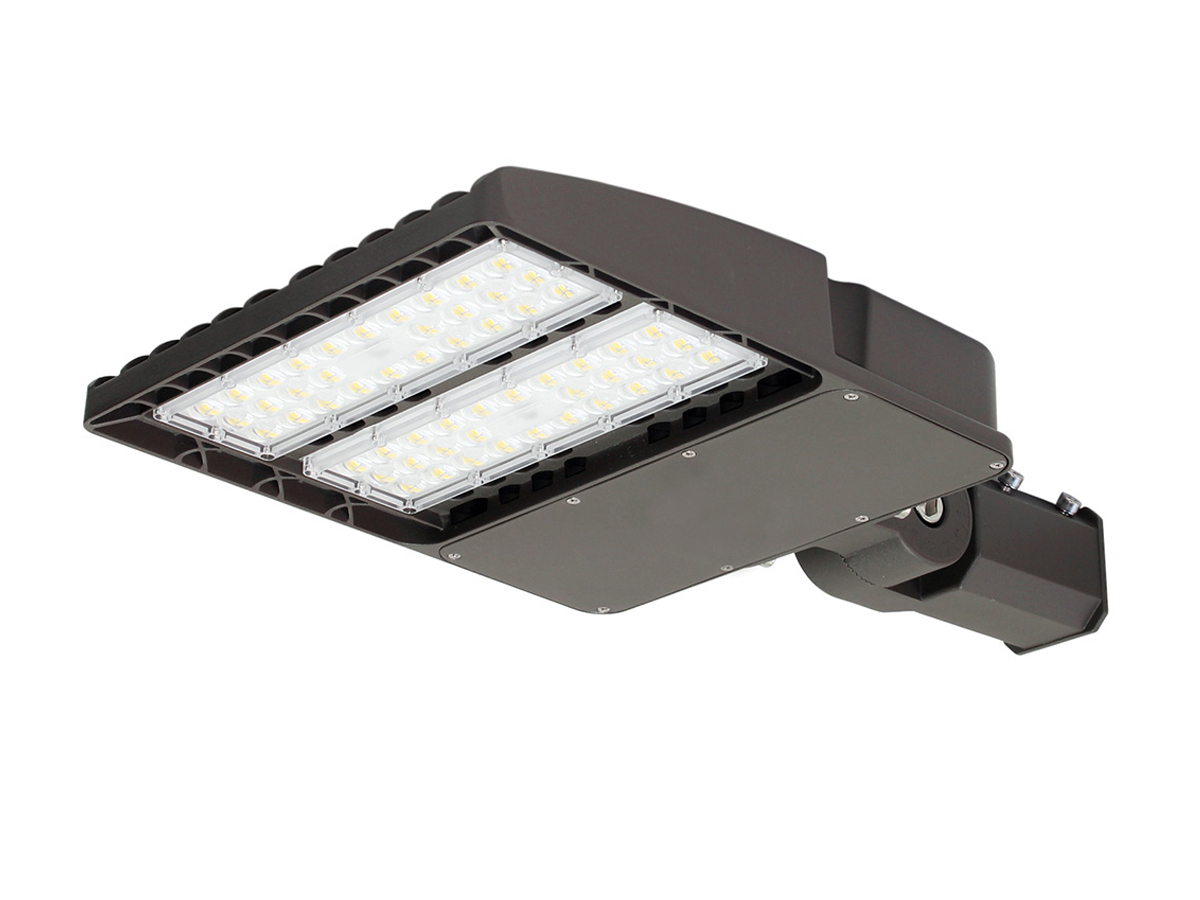

ETL DLC LED Shoebox Light 120W
Description
led shoebox light


Product Features

• >140lm/w.
• Universal AC input 100-277Vac or 200-480Vac.
• Protections: Short circuit / Over current/ Over temperature
• Meanwell driver and Osram led chip.
• IP65 can be outdoor using.

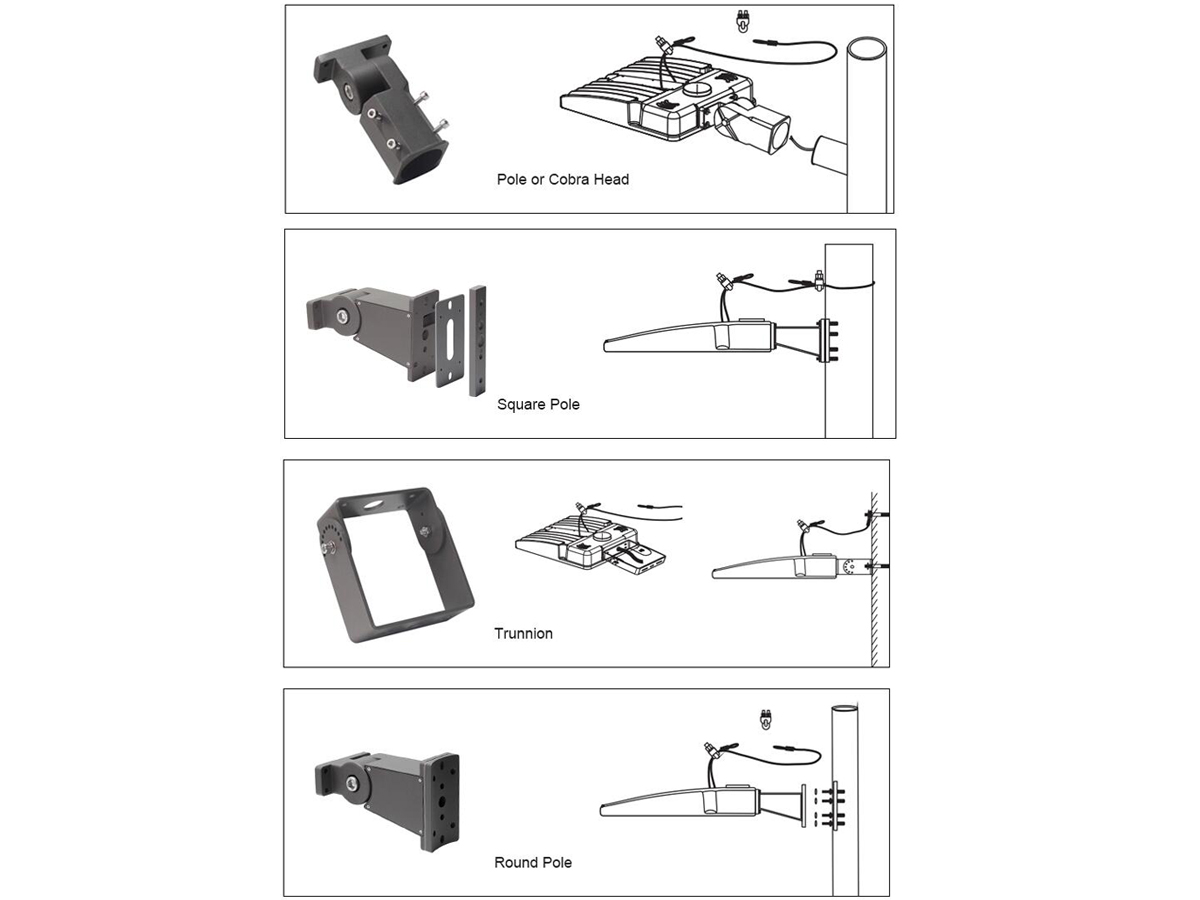

• 4 type mounting brackets
• 3 distribution type:
  Type II short, Type III short, Type Vs.

 led shoebox light

led shoebox light



Dimension

 led shoebox light dimension



Technical Specifications
Item No. SBL-120W
Rated Power 120W
Input Voltage 100-277Vac or 200-480Vac.
Input Current 0.72A / 115VAC ; 0.38A / 230VAC ; 0.32A / 277VAC
Power Factor PF>0.95
Power Efficiency >93%
Light Source/Count Osram led
Lamp Base Wires
LED Luminous Efficiency >140lm/w
Luminous Flux 17,500lm
Color Temperature 3000k, 4000k, 4500k, 5000k, 5700k, 6500k
Color Rendering Index(CRI) Ra>83
LED Emitter Life >50,000hours
Replacement 300-400w MH, HPS
Working Environment Outdoor Lighting
Operating Temperature -40~50℃
Warranty 5 years factory warranty
The Dimensions 336*322mm/ 13.2*12.7in



Application

This LED light is widely used for parking lot lighting, and other places where need energy saving and high color rendering index lighting.

 LED Shoebox Light application



The relevant product parameters
Item No. Rated Power Power Factor Replacement Luminous Flux LED CRI
SBL-80W 80W PF>0.95 175-250w MH, HPS 12,000lm Osram led Ra>83
SBL-100W 100W PF>0.95 250-300w MH, HPS 14,700lm Osram led Ra>83
SBL-120W 120W PF>0.95 300-400w MH, HPS 17,500lm Osram led Ra>83
SBL-150W 150W PF>0.95 350-450w MH, HPS 21,500lm Osram led Ra>83
SBL-300W 300W PF>0.95 1000-1200w MH, HPS 43,000lm Osram led Ra>83
